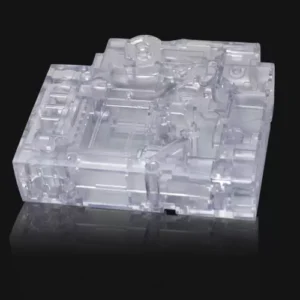

Explore 6801 transparent SLA resin, a fully transparent and durable...
SLA 3D Printer
SLA 3D Printer PT-600
sla 3d printer pt-600 brochure
Best Resin SLA 3D Printer PT-600: Innovative Design & Performance
Compact and Cost-Effective Design
The Best Resin SLA 3D Printer 600F has been carefully engineered for both performance and space efficiency. With a reduced physical footprint, this printer minimizes space occupation, cutting down on transportation and site rental costs. This compact design translates to more economical benefits for customers, offering a cost-effective resin printing solution without compromising on quality.
Advanced Features for Enhanced Productivity
This resin printer integrates optical, electrical, control software, and appearance design upgrades to enhance the efficiency of small batch production. Its structural integration ensures stable operation, enabling it to deliver high-quality prints at a competitive price.
Excellent Efficiency, Ultimate Precision
The PT-600 is the first-ever 3D printer to feature a LINUX-based control system combined with DLC variable laser power control. This innovative technology boosts the printing speed by up to 150%-650% faster than conventional SLA printers, drastically reducing production cycle times. The printer also supports ultra-thin layer thickness printing, with precise details down to 0.05mm, making it ideal for high-end manufacturing standards where every detail matters.
Intelligent Operation and User-Friendly Interface
Designed for simplicity, this SLA 3D printer features self-developed control software with a user-friendly, intuitive interface. The one-button operation makes it easy to operate, even for beginners. Additionally, the intelligent remote control function allows for 24-hour uninterrupted production, enabling true smart manufacturing with remote operation capabilities.
Specification
Build Size (xyz)1 | 600 x 600 x 400 mm (23.62 x 23.62 x 15.75 in) |
Printing Speed | 75-180g/h |
Scanning Speed | 15.0m/s (Maximum) |
Accuracy | Part Size< 100 mm(3.9 in): ±0.01 mm(±0.004 in) Part Size≥ 100 mm(3.9 in):±0.02% x L |
Layer Thickness | 0.05mm～0.15mm (0.00197 in-0.00591 in) |
Laser System | All-solid-state UV laser 3W |
Optical System | UItraScan SCAN(355nm) |
Operating Software | ProtoBest Intelligent Printing Control Software / Linux or Windows (Optional) |
CAD Interface | STL Format Files |
Machine Size W x D x H | 1.2m (W)x 1.15m(D) x 1.88m(H)(47.24 x 45.28 x 74.02 in) |
Ambient Temperature | 20-26ºC (68-78.8℉) |
Relative Humidity | Less than 50% |
Power Requirements | 200-240VAC 50/60Hz Single Phase 10A |
Contact
3D Printing Materials

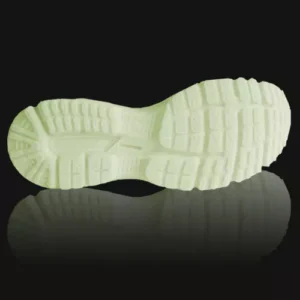

High Toughness sla abs 3d resin G8070
Discover 6602H SLA ABS resin, a high-precision and high-temperature-resistant SLA...

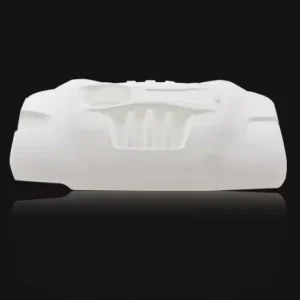

ABS-Like sla 3d printer resin W7070
Discover 6202 SLA 3D Printer Resin, a fast-curing and cost-effective...
